涿州无人机竞赛飞行器以及地面站相关内容
下载
竞赛指定机型
此次竞赛飞行器机型为汉鲲智能科技提供的型号为HK-6410的四类飞行器，配备Q10多轴云台以及云卓H16遥控器
以下是该飞行器的信息参数

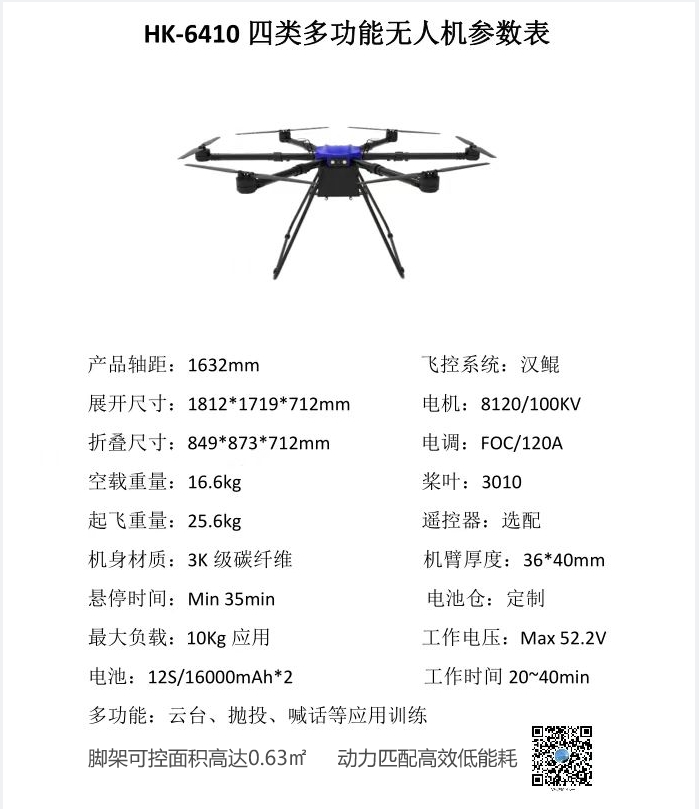

HK-6410参数

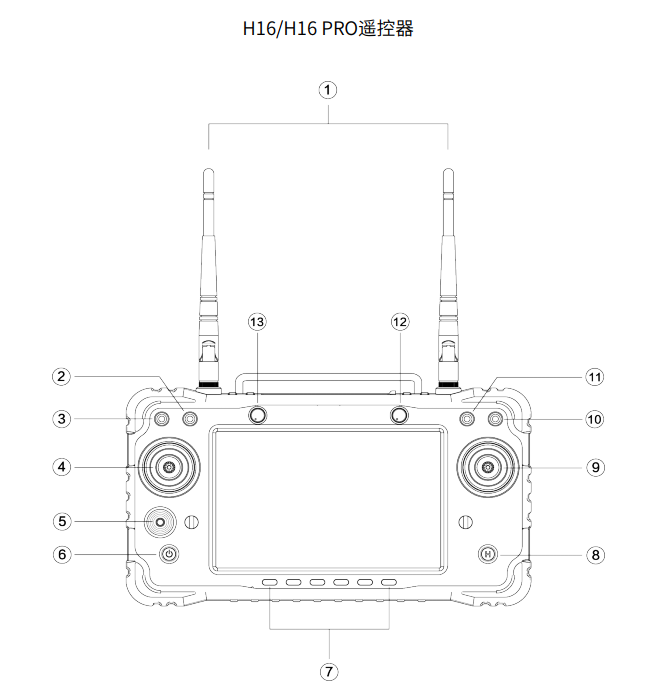

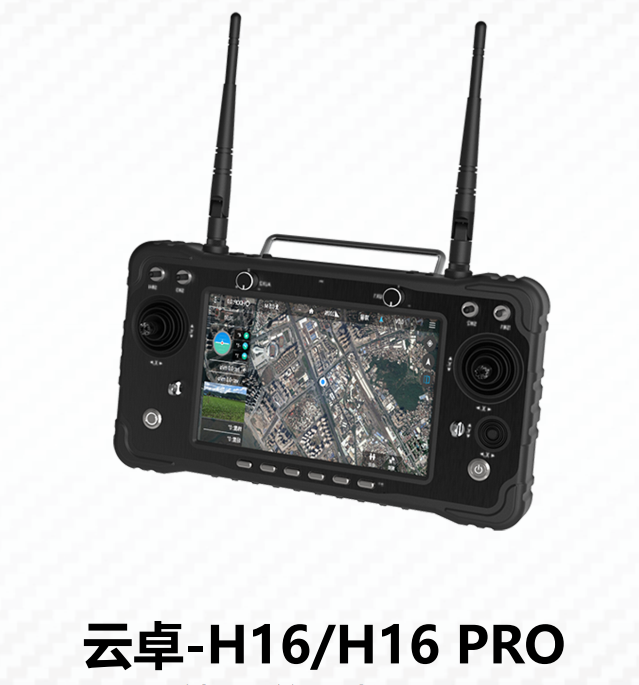

H16遥控器

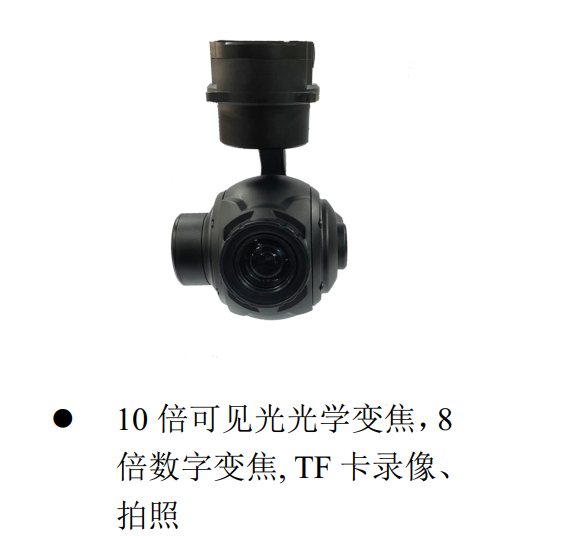

Q10N云台
云台的挂载方式为挂载在飞行器正下方
竞赛指定地面站软件
竞赛使用汉鲲超视距地面站软件进行航线规划飞行
竞赛使用汉鲲行业地面站进行拍摄
超视距地面站软件下载链接
地面站软件下载链接
下载内容为：多旋翼超视距地面站-3D 版本
行业地面站已内置在遥控器内
[遥控器控制云台演示](【涿州竞赛项目-遥控器控制云台演示】 https://www.bilibili.com/video/BV1Wt2gYtEL3/?share_source=copy_web&vd_source=3294eedac1cf618d2dbda88d67edf41b)
