915HZ数传使用教程
下载

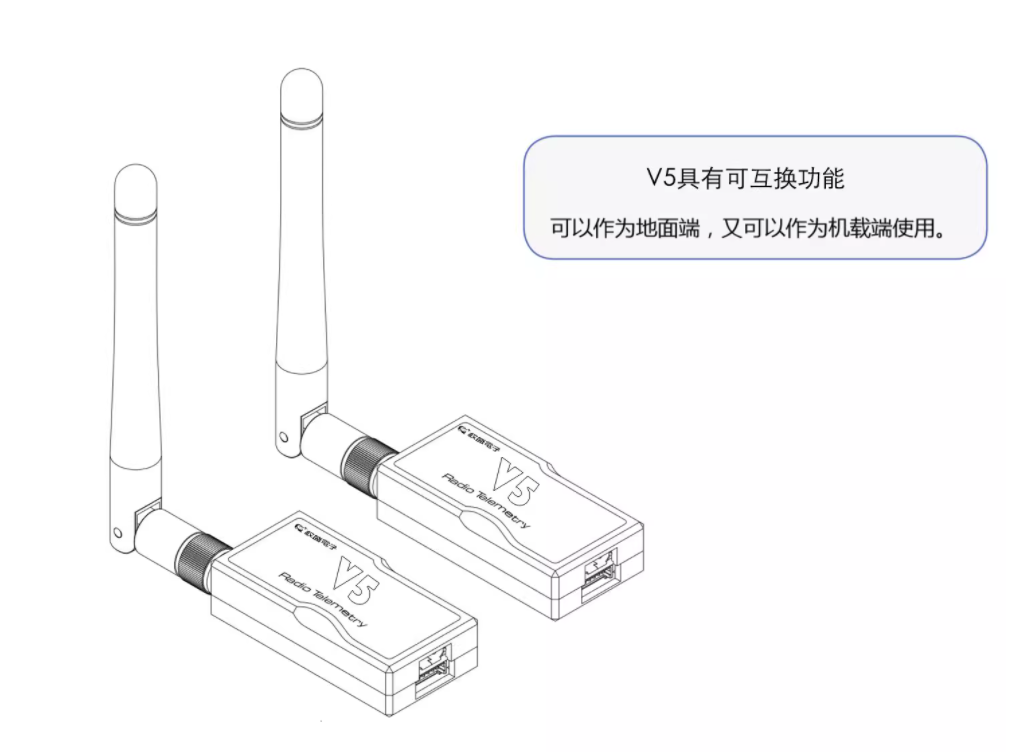

915数传概述：
915HZ数传意在为飞控和电脑之间提供无线的近距离传输功能，以实现超视距功能
产品参数
| 物理参数 | 数值 |
|---|---|
| 通信频段（空/无阻碍） | 100mW / 500mW / 1000mW |
| 可选频率 | 915MHz |
| 波特率 | 57600 |
| 工作温度 | -10°C ~ 60°C |
| 湿度范围 | 10% RH ~ 90% RH |
| 尺寸 | 49mm（长）× 25mm（宽）× 13mm（高） |
| 重量 | 22.5g |
| 工作电压 | 3.7V ~ 6V DC |
| 工作功耗 | 100mA @ 30 dBm |
安装教学

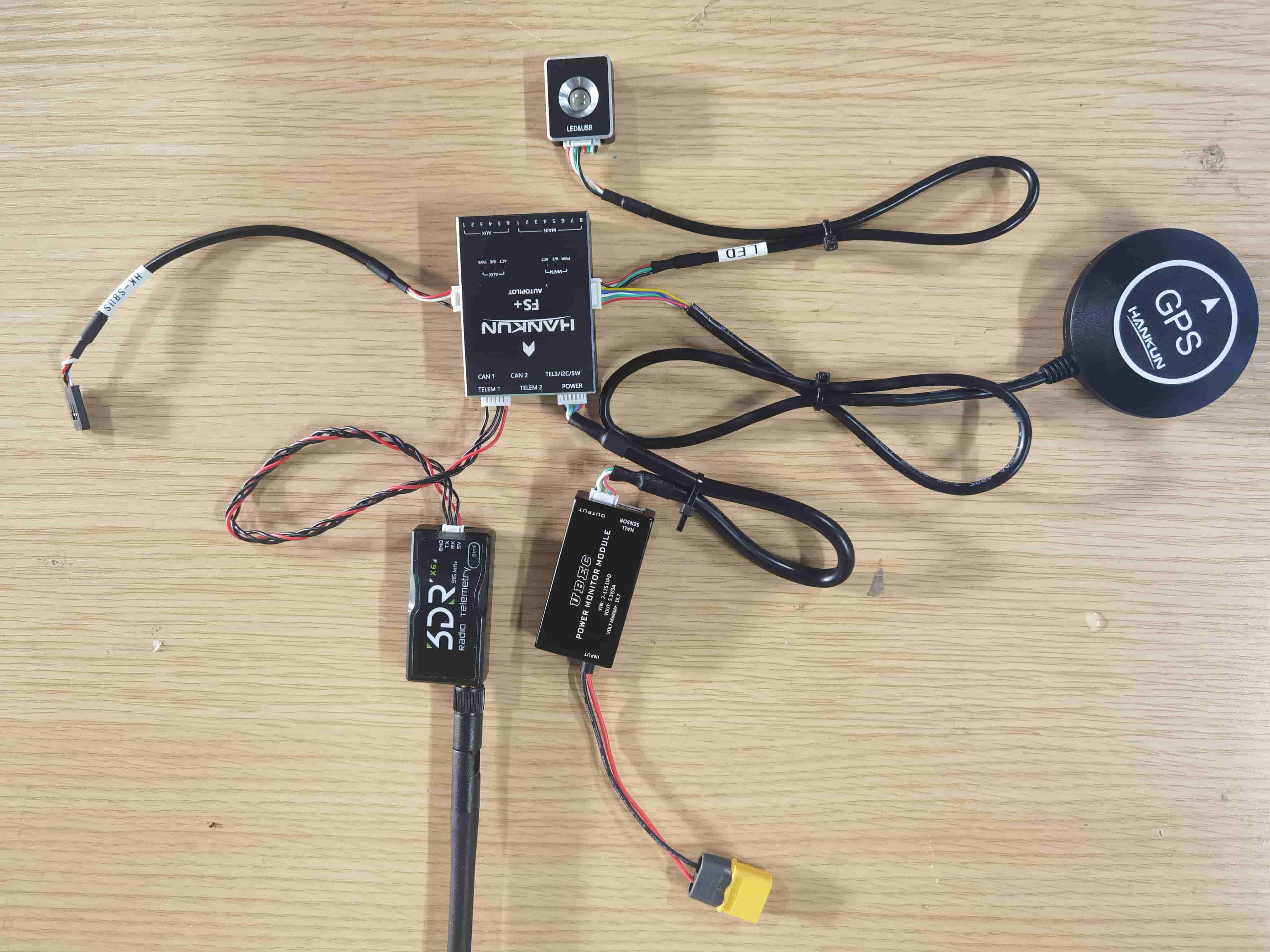

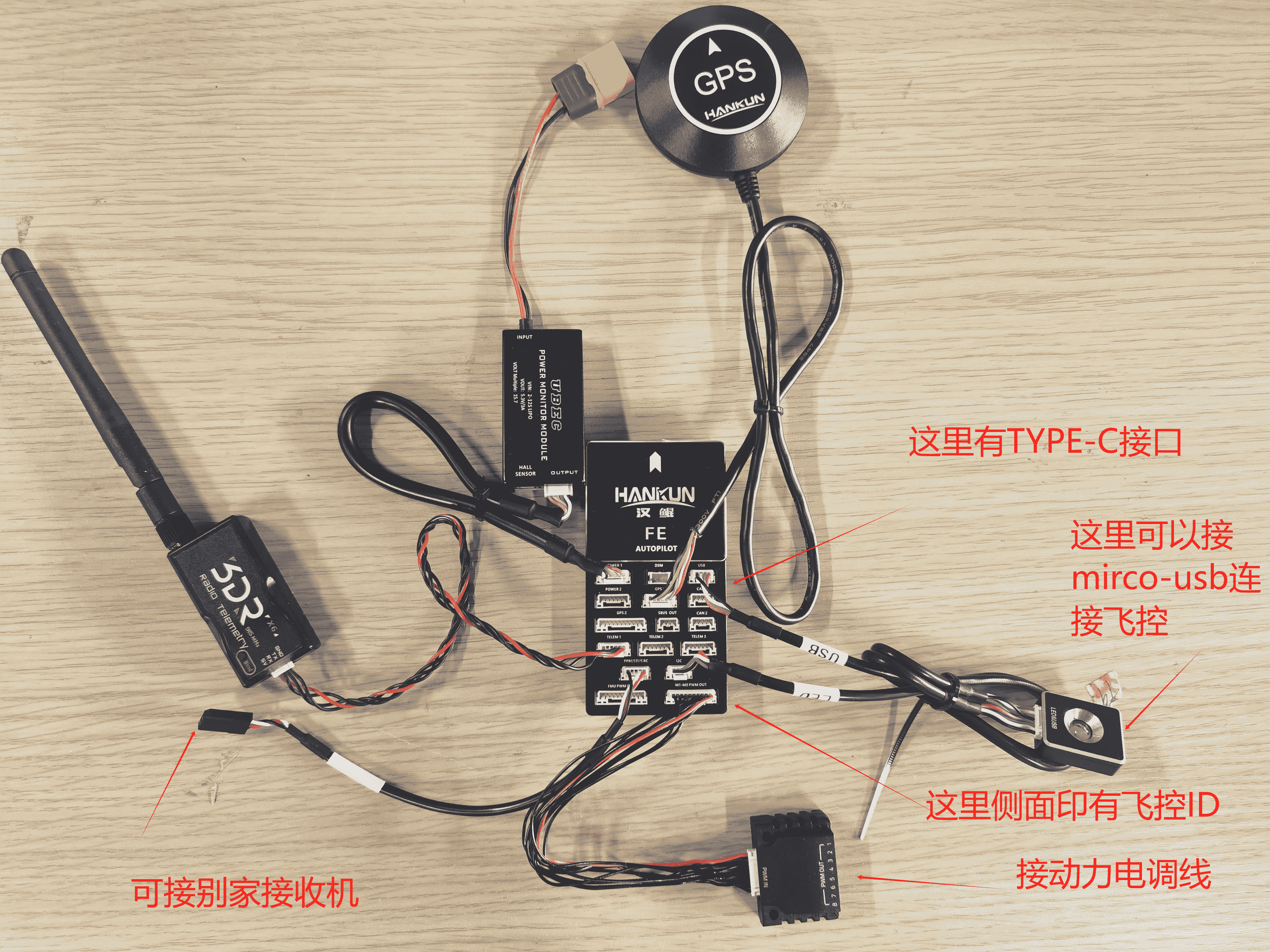

1.接在FE/FS+飞控的TELEM1口
2.天空端尽量把线引到机壳外部，天空端使用3M胶粘贴在机壳外部
对频教学
数传对频的方法：两边都上电，然后都长按按钮等灯红色闪烁松开，两个数传靠近之后绿灯常亮就是对频完成了
